Piezo Inkjet Printers

InteliJet HD servo WAS

InteliJet HD ServoWAS with samples

Monochrome, 2 Color & Full CMYK

Piezo drop on demand digital printer will print all artwork including variable information. Available in single color, two color, and full CMYK configurations which allows limitless print capabilities for existing and future business. Available UV curable inks or water-based inks for printing on most substrates.

  • UDI compliant print solution that can be retrofitted to existing packaging machines
  • 600 X 600 DPI Print Head
    • Each Monochrome Print Head is 108mm wide, 105mm when stitched
    • Each CMYK Print Head is 112mm wide, 108mm when stitched
  • Lowest cost of ownership compared to other printing systems
  • Connect to customer ERP systems and through a hot folder, can utilize existing label software like Prisym, Labelview, Bartender, and more

InteliJet HD traverse

Traversing Monochrome System

InteliJet HD Traverse

A perfect fit for applications with short indexes combined with a wide web or applications with pre-printed web with the need to print UDI and other variable data.

InteliJet HD Traverse Web Direction / Print Area

InteliJet HD off- line

Offline Feeder & Printer System

Feed and print empty packages and packaging components.

HD Print on Cardboard Box InteliJet HD Offline

Click here for more info on the InteliJet HD  printing systems

InteliJet HD  reel-to-reel

Reel-To-Reel Piezo Inkjet Print System

Unparalleled Print Control. The InteliJet HD  R reel-to-reel system ensures smooth, continuous material handling with precise control. It manages large rolls, maintaining consistent tension to prevent substrate damage. Accurate web guiding keeps the material aligned, and the automated rewind system ensures efficient roll formation after printing. Designed for various flexible web materials, the system minimizes waste and maximizes production efficiency.

Max Web Width 400mm*
Max Roll Diameter 500mm
Max Print Width 333mm (centered)*
Max Print Speed 60m/min
*Larger web widths available upon request.

Optional Vision System & Splice Table available.

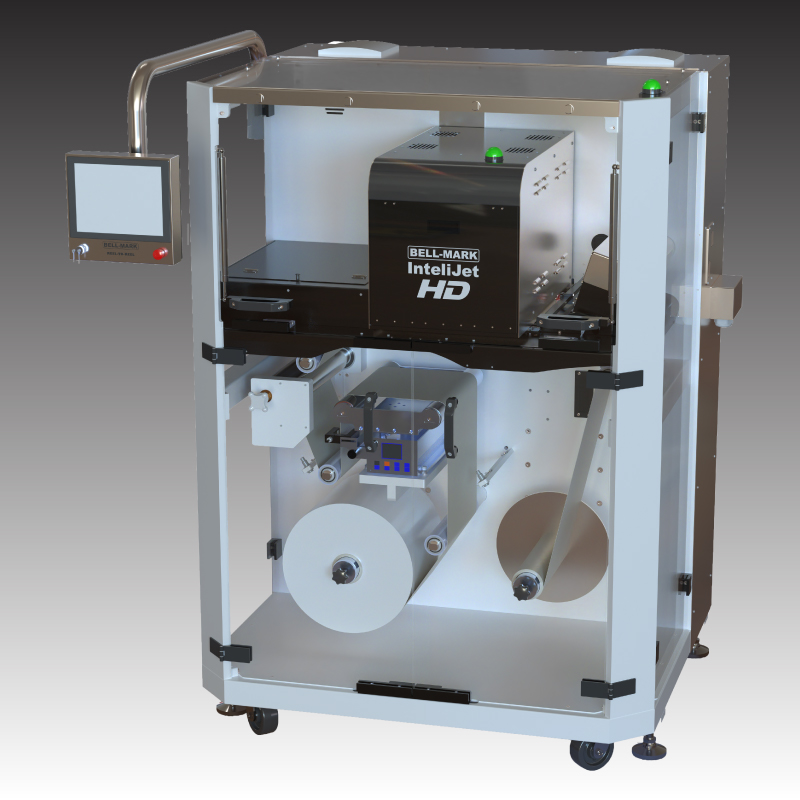

InteliJet HD 3R Reel-To-Reel Piezo Inkjet Printing System

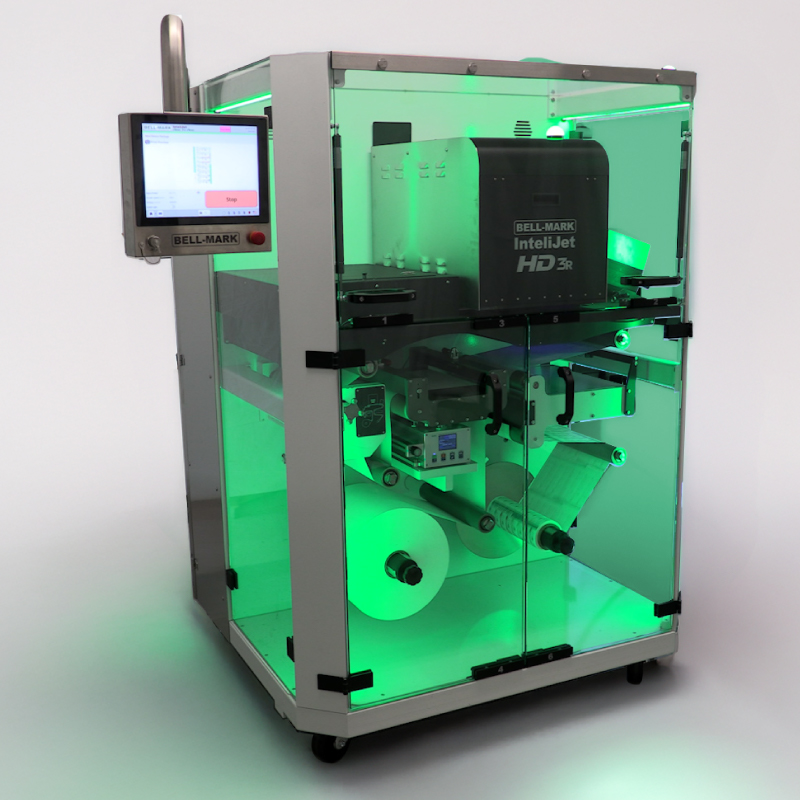

InteliJet HD 3R Reel-To-Reel Piezo Inkjet Printing System, green lit, print mode
Print Rolls of Material IN-HOUSE, ON DEMAND

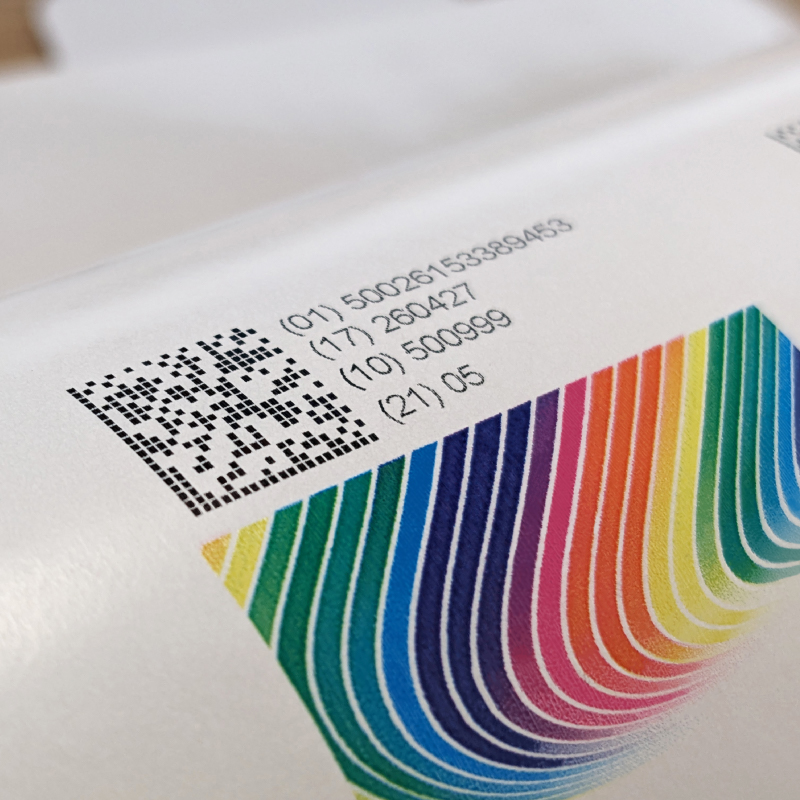

Printed Roll, CMYK graphic with UDI barcode
Sustainable Label Printing Solution with Zero Waste
Printed Roll of Labels, Medical Device Application

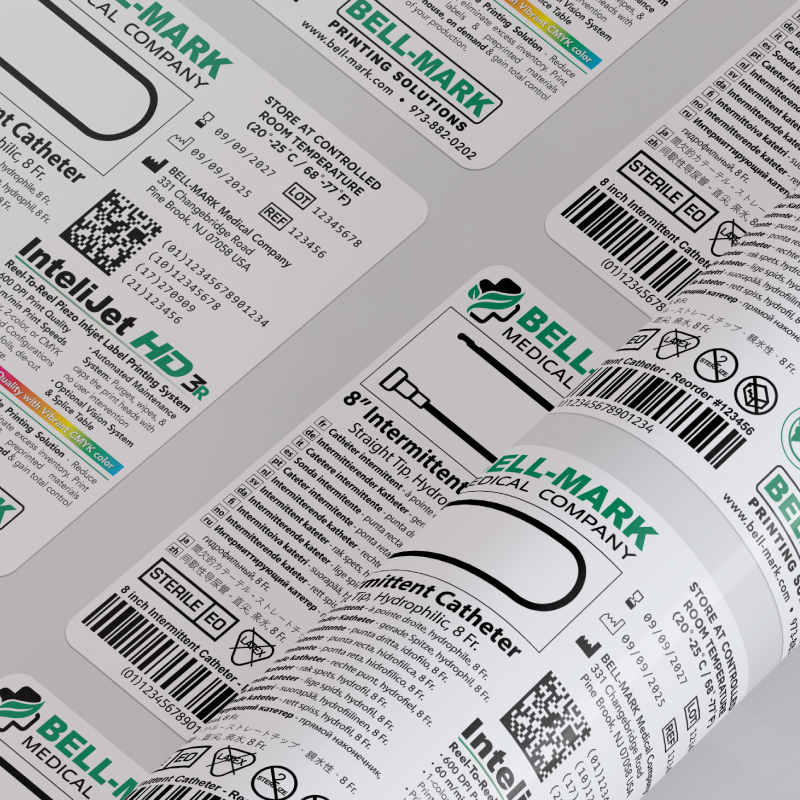

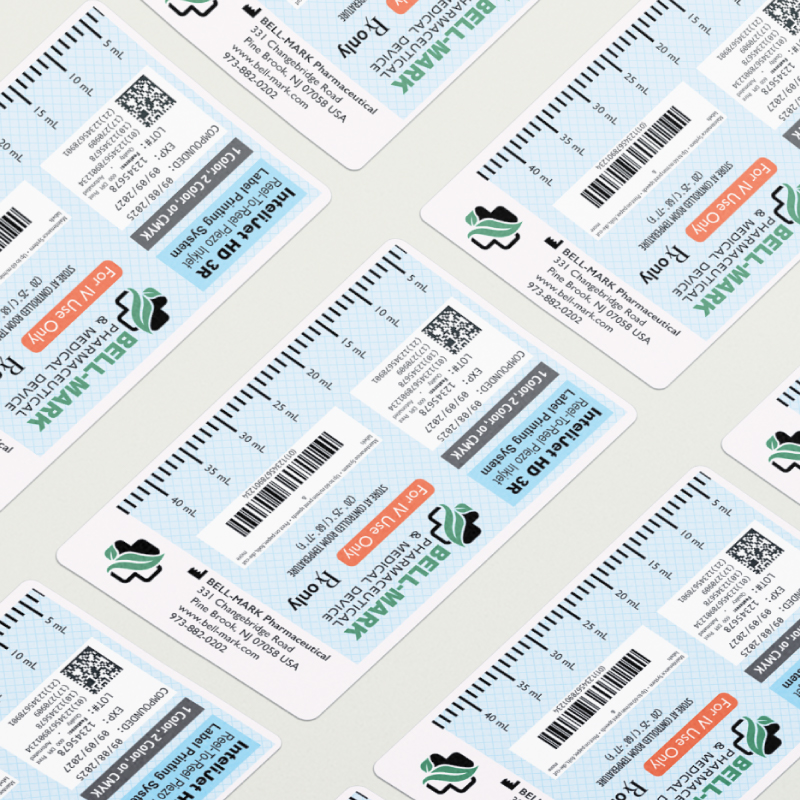

Printed Roll of Labels, Medical Device Syringe Application

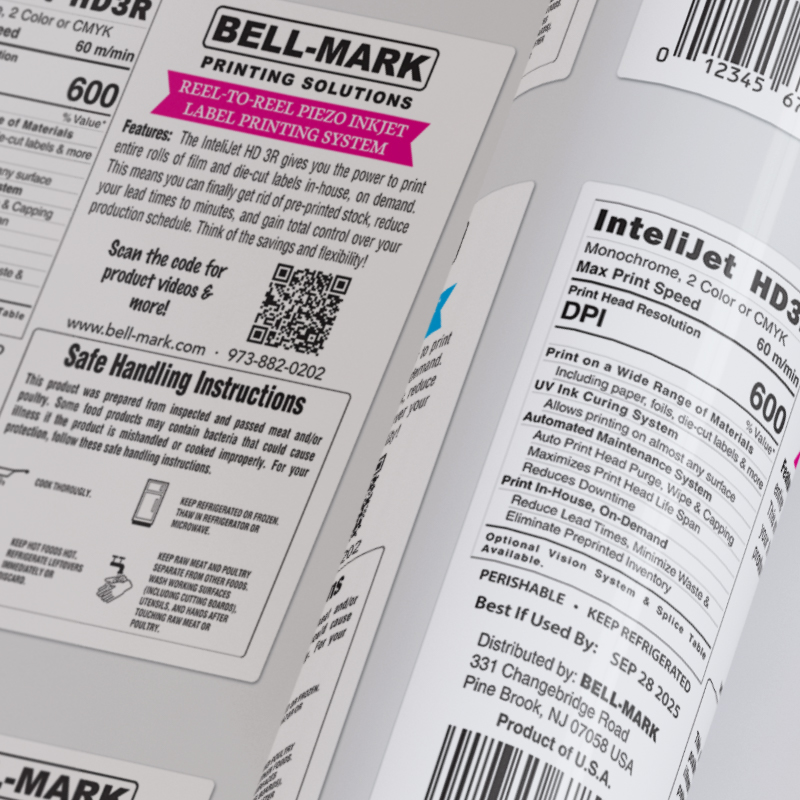

Printed Roll of Labels, Food Packaging Application
InteliJet HD 3R Reel-To-Reel Piezo Inkjet Printing System
InteliJet HD 3R Reel-To-Reel Piezo Inkjet Printing System, green lit, print mode
Print Rolls of Material IN-HOUSE, ON DEMAND
Printed Roll, CMYK graphic with UDI barcode
Sustainable Label Printing Solution with Zero Waste
Printed Roll of Labels, Medical Device Application
Printed Roll of Labels, Medical Device Syringe Application
Printed Roll of Labels, Food Packaging Application

InteliJet HD  3

The Future of On Demand Printing

Introducing the InteliJet HD 3—the newest generation of BELL-MARK's high-definition piezo inkjet printers. Engineered for the most demanding packaging environments, the HD 3 combines industry-leading, high-performance print heads with 600 DPI print quality, next-level automation, maximum reliability, and ultra-fast print speeds. HD 3 is more than just a printer; it's a smart investment that will future-proof your production line for years to come.

  • Lowest cost of ownership compared to other printing systems.
  • Little to ZERO maintenance.

Print entire packages on-demand including all variable data, directly on to almost any surface with UV-cured or water-based inks. The InteliJet HD 3 is available in 3 unique models, each custom-designed for specific applications to deliver maximum performance:

  • 1a - Accumulator System
  • 4r - Reel-To-Reel System
  • 5s - Servo Web Advance System

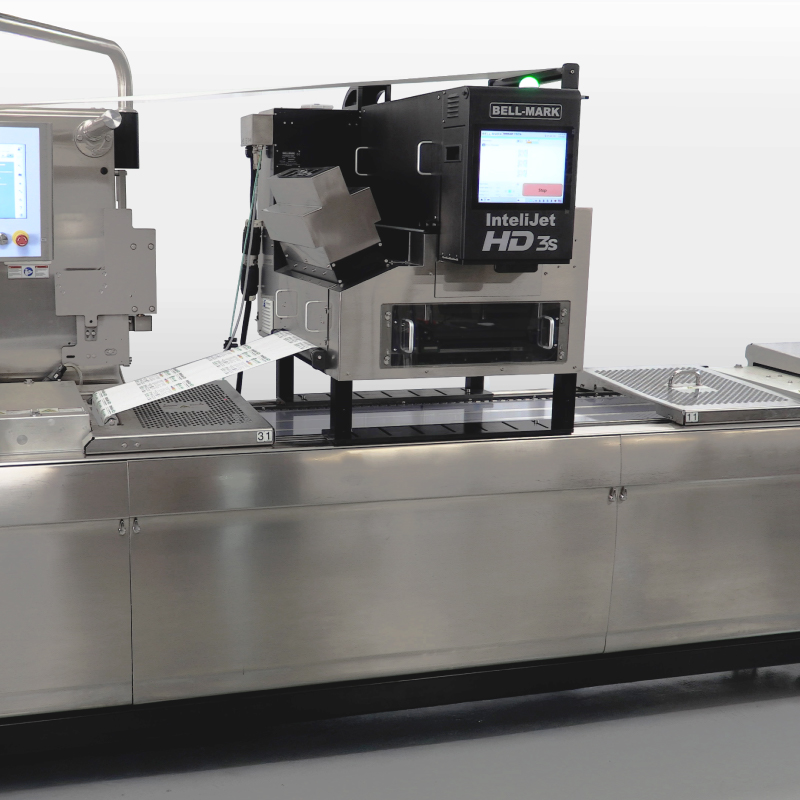

InteliJet HD 3S - Servo Web Advance System
InteliJet HD 3S - Web Exit with Printed Package

Features

  • LED UV Curing System. Instantly cures and protects the ink to guarantee lasting print quality.
  • Built-in Automatic Print Head Purge, Wipe, & Capping. Reduce downtime with automatic maintenance at the push of a button, ensuring maximum print head life and the highest print quality at all times.
  • Network Connectivity. Connect to an ERP system and utilize Hot Folder to use existing label software like Prisym, Labelview, Bartender, and more. Network connections include Ethernet, TCP/IP, OPC-UA (can be client or server), Serial (RS232), Hot Folder, and more.
  • Splice Detection. Retracts and protects the print heads from web splices without stopping production.
  • Advanced User Interface. Built-in 307mm touchscreen for controlling all aspects of the printer.
    • BELL-MARK Layout / Label Creation tools provide the ability to design and modify print templates using an extensive array of editing tools.
    • Integrated help system that provides a convenient way to view tutorial videos step-by-step instructions on how to perform maintenance tasks.
    • Create customized workflows for an enhanced customer experience.
    • Supports all types of variable information (text, barcodes, date codes, serialization) and over 80 types of barcodes including: GDS1-128, GS1-Datamatrix (2D), EAN 13, EAN 14, Code 39, Code 128, UPC A, SSCC18, PZN, and QR-Code.
  • Remote Support. The InteliJet HD has remote training and support, only requiring an internet connection.
InteliJet HD 3S - HMI UI

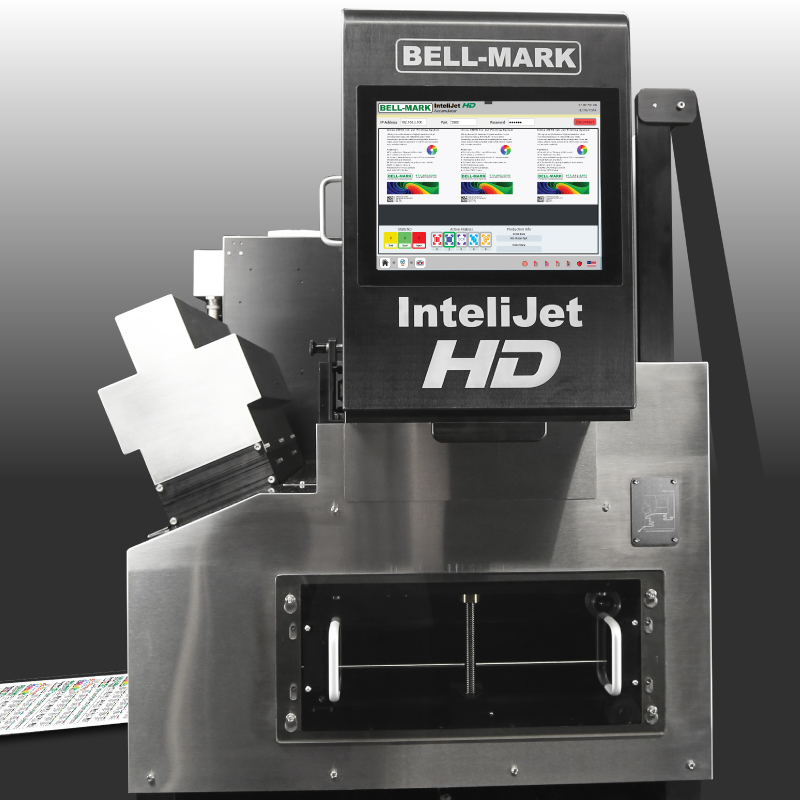

InteliJet HD 3A Accumulator Piezo Inkjet Printing System

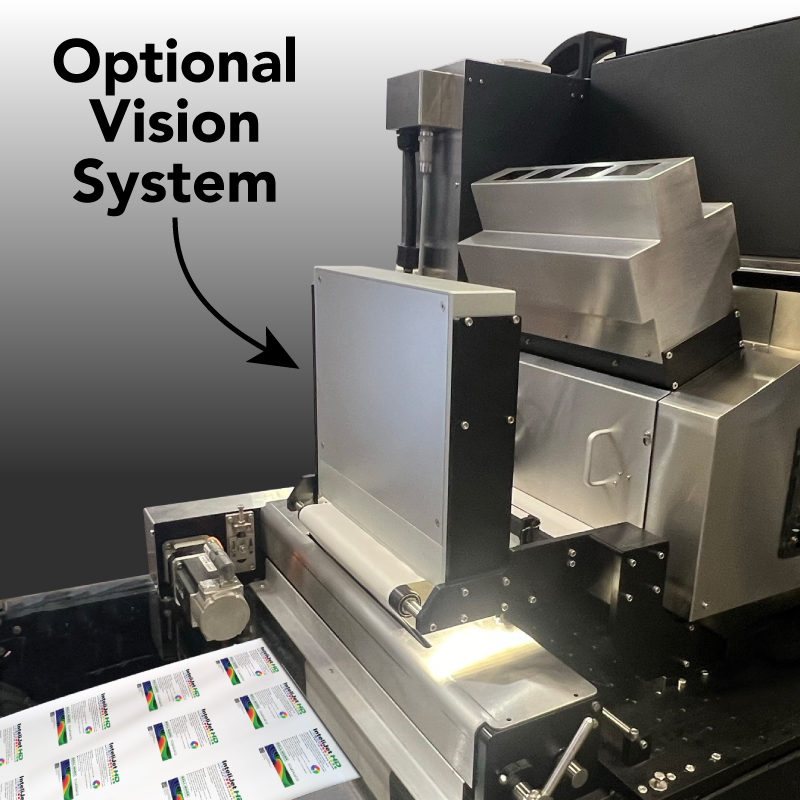

InteliJet HD 3A with Optional Vision Inspection System

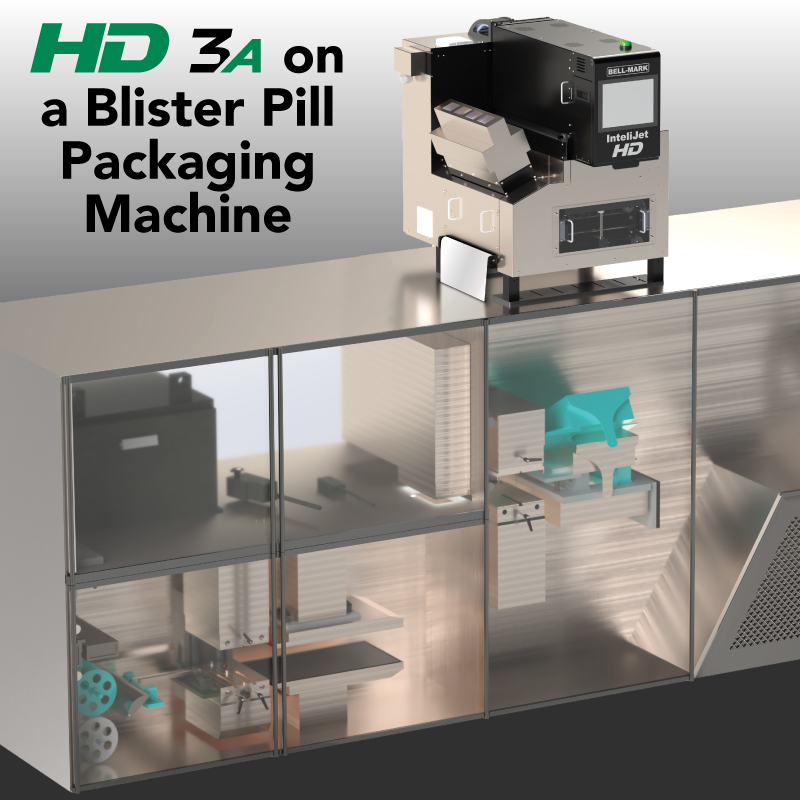

InteliJet HD 3A on a blister pill packaging machine
Blister pill package print samples
InteliJet HD 3A Accumulator Piezo Inkjet Printing System
InteliJet HD 3A with Optional Vision Inspection System
InteliJet HD 3A on a blister pill packaging machine
Blister pill package print samples

InteliJet HD  1a

Accumulator Piezo Inkjet Printer

Unparalleled Print Control. The HD  1a  has a unique buffering system that works independently of the packaging machines web pull. The web tension control, which is important for printing applications where print speed and print tension is critical, such as printing on pharmaceutical blister packs, isolates the printing process from the packaging machine's web advance, allowing for consistent web tension during the printing process. The HD  1a  can be retrofitted to almost any packaging machine.

Designed for High-output Applications. The HD  1a  can reach printing speeds over 100 cycles per minute on an intermittent packaging machine. Print on flexible materials, including blister pack top webs.

InteliJet HD  4r

Reel-To-Reel Piezo Inkjet Printer

Unparalleled Print Control. The HD  4r system ensures smooth, continuous material handling with precise control. It manages large rolls, maintaining consistent tension to prevent substrate damage. Accurate web guiding keeps the material aligned, and the automated rewind system ensures efficient roll formation after printing. Designed for various flexible web materials, the system minimizes waste and maximizes production efficiency.

Max Web Width 400mm*
Max Roll Diameter 500mm
Max Print Width 333mm (centered)*
Max Print Speed 60m/min
*Larger web widths available upon request.

Optional Vision System & Splice Table available.

InteliJet HD 3R Reel-To-Reel Piezo Inkjet Printing System
InteliJet HD 3R Reel-To-Reel Piezo Inkjet Printing System, green lit, print mode
Print Rolls of Material IN-HOUSE, ON DEMAND
Printed Roll, CMYK graphic with UDI barcode
Sustainable Label Printing Solution with Zero Waste
Printed Roll of Labels, Medical Device Application
Printed Roll of Labels, Medical Device Syringe Application
Printed Roll of Labels, Food Packaging Application
InteliJet HD 3R Reel-To-Reel Piezo Inkjet Printing System
InteliJet HD 3R Reel-To-Reel Piezo Inkjet Printing System, green lit, print mode
Print Rolls of Material IN-HOUSE, ON DEMAND
Printed Roll, CMYK graphic with UDI barcode
Sustainable Label Printing Solution with Zero Waste
Printed Roll of Labels, Medical Device Application
Printed Roll of Labels, Medical Device Syringe Application
Printed Roll of Labels, Food Packaging Application

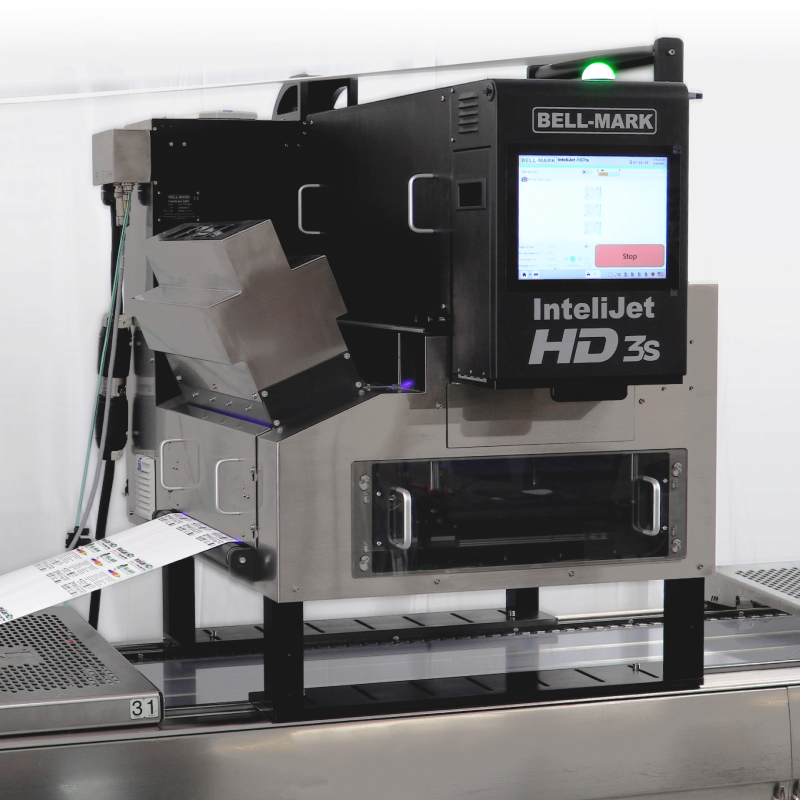

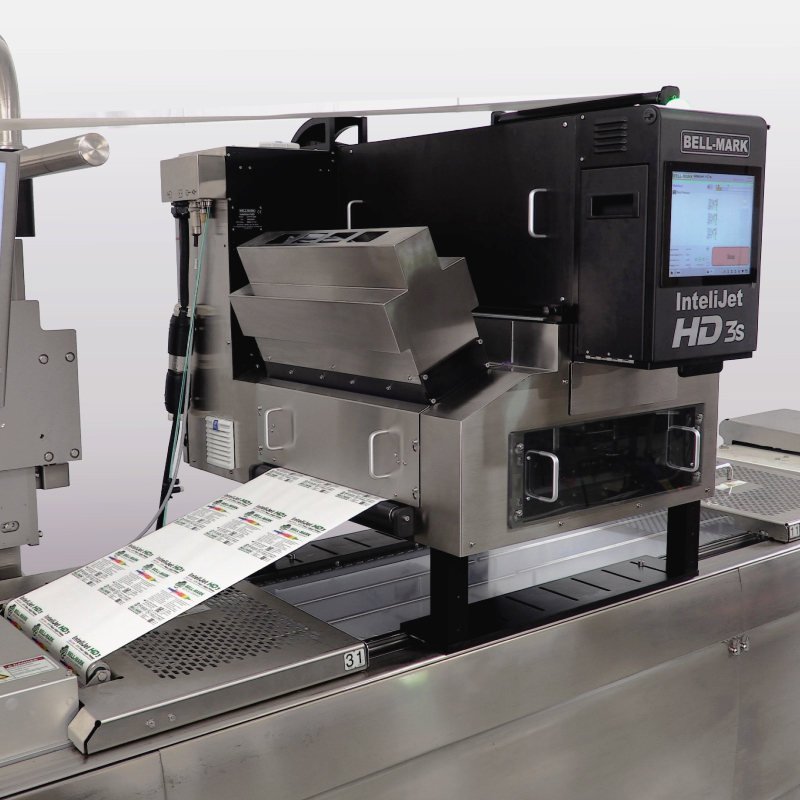

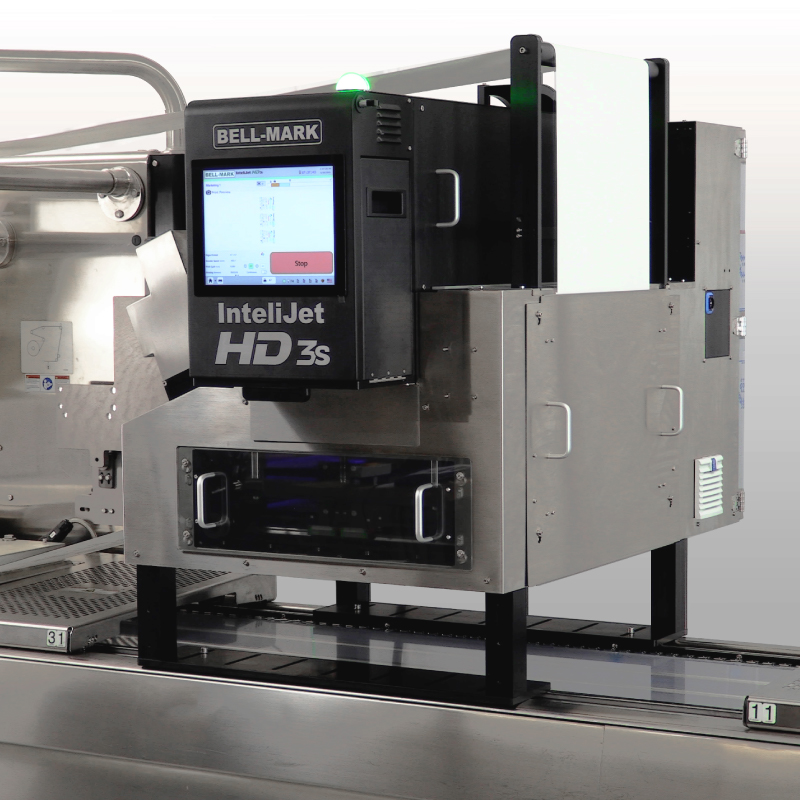

InteliJet HD3S ServoWAS Piezo Inkjet Printing System
InteliJet HD3S ServoWAS Piezo Inkjet Printing System
InteliJet HD3S ServoWAS Piezo Inkjet Printing System

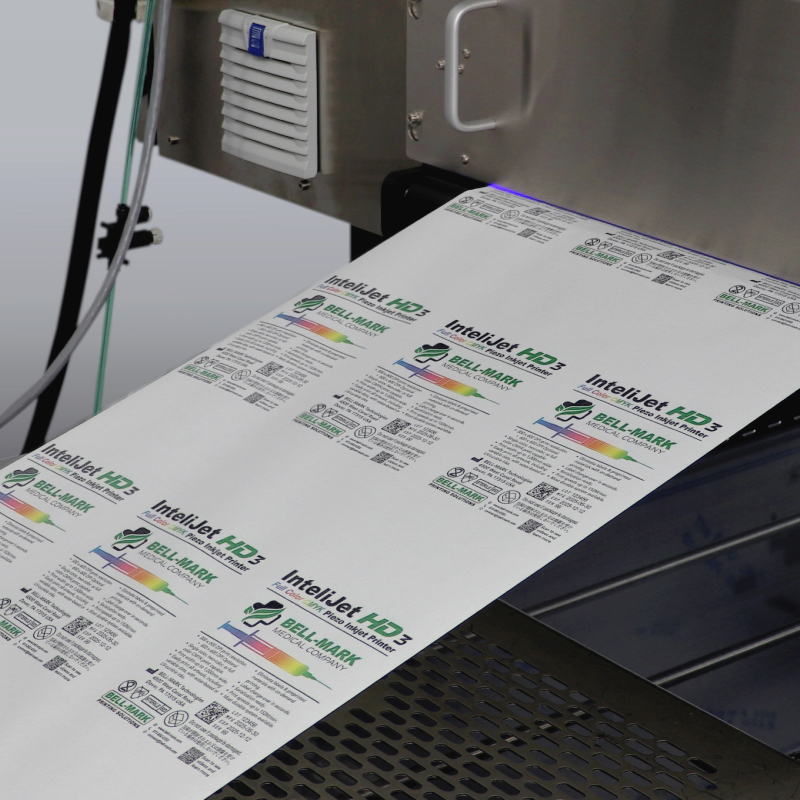

Web exiting the HD3S
Web exiting the HD3S
InteliJet HD3S ServoWAS Piezo Inkjet Printing System
HD3S Print Samples
InteliJet HD3S ServoWAS Piezo Inkjet Printing System
InteliJet HD3S ServoWAS Piezo Inkjet Printing System
InteliJet HD3S ServoWAS Piezo Inkjet Printing System
Web exiting the HD3S
Web exiting the HD3S
InteliJet HD3S ServoWAS Piezo Inkjet Printing System
HD3S Print Samples

InteliJet HD  5s

Servo Web Advance Piezo Inkjet Printer

Extreme Versatility. The most versatile HD printing solution, the HD 5s utilizes stationary print heads with an intelligent servo motor that provides closed-loop positioning for accurate print registration.

Web Advance Module. The web shuffle mechanism facilitates precise positioning that optimizes the print speed during the dwell time.

Click here for more info on the InteliJet HD  3 Series
