EasyPrint S32


Thermal Transfer Printers

EasyPrint S32 mlp

Multiple Lane Traversing Thermal Transfer Printer

The EasyPrint mlp is designed for versatility. The EasyPrint mlp is the ideal machine for in-line printing of batch codes, graphics, logos, sell-by dates, bar codes and other variable information. The thermal transfer technology prints directly onto packaging substrates such as poly films, foil, Tyvek®, medical paper, cartons and labels. The EasyPrint mlp provides solutions for multiple package coding and printing on Multivac, GEM, Rapidpak, Repak, Ulma, Fargo Automation and all horizontal form, fill, seal, packaging machines.

Multiple Lane Thermal Transfer Printing for:

  • Pharmaceuticals
  • Blister Packages
  • Syringes
  • Sutures
  • Catheters
  • Processed Meats
  • Cheeses
  • Pouches
  • And more...

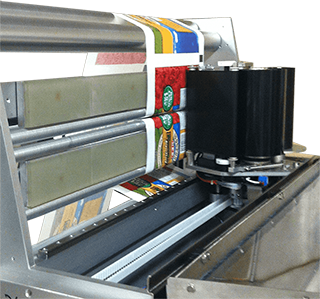

EasyPrint mlp s32

Features

  • Ribbon saving feature reduces ribbon waste up to 50%.
  • Low air pressure detection maximizes print quality for critical applications.
  • Carriage home position is located at operator side for easy ribbon changes.
  • Floating print head provides perfect alignment to substrate for high quality printing.
  • Available with 2" (53mm), 5" (128mm), and 8.3" (213mm) print heads.

Multi Lane - Traversing Printer

Single Lane Printing

s p l i t   p l a t e n

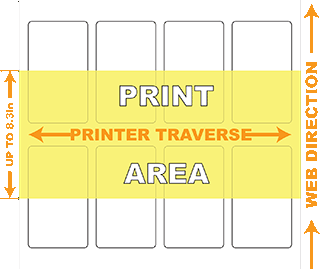

Multi Lane - Multi Row Printing

Split Platen Printing
EasyPrint MLP Apex Printing with Split Platen

Print multiple lanes with a single sweep of the head.

EasyPrint S32 mlp X 

Harsh Environment Thermal Transfer Printer

The EasyPrint mlp X was designed to provide a versatile thermal transfer solution for direct package coding in harsh environments. The EasyPrint mlp X is the ideal machine for in-line printing of all the variable data required for Meat and Dairy Packaging, specifically those that utilize multiple rows or columns across each package.

6 Features allow for harsh environment printing

  1. A stainless steel cover which offers more protection that the standard lexan cover.
  2. A top cover extension to prevent dripping water from entering the printer.
  3. Roller extensions on the in-feed to direct the web around the extended cover.
  4. Conformal coated circuit boards prevent damage from moisture.
  5. Sealed push buttons to prevent damage from moisture.
  6. Sealing grease in umbilical cable connector to prevent damage from moisture.
EasyPrint MLP X s35

Specifications

Print Technology

Direct Thermal Transfer

Print Area

Up to 8.3 x 24.48in (213 x 630mm)

Print Speed

From 25mm/sec up to 600mm/sec

Print Density

300 DPI (12dots/mm)

# of Lanes to Print

Up to 99

Graphic Logos

BMP, DXF, PCX, TIF, WMF, GIF

Time/Date

Yes

Bar Codes

EAN 13, EAN 8, Code 39, 2/5 Interleave, UPC A, UPC E, Code 128, EAN 128, HIBC LIC 128, PZN, EAN add-on, Date Code, Data Matrix

Memory Storage

On Board USB, CF Cards x2 or PC

Ribbon Length

3,198 ft. (975m)

Communication

RS232, USB, Parallel DB25 Ethernet

Display

7" Color Touch Screen

Temperature

41°F - 104°F (5°C - 40°C)

Humidity

10 - 80% without condensation

Electrical

115/230 VAC, 50/60Hz, 400VA

Compressed Air

.353 CFM @88 PSI, Max (10LT/min @ 6 BAR)

EasyPrint S32 mlp X  mini

Harsh Environment Thermal Transfer Printer

The EasyPrint mlp X mini is designed for versatility. The EasyPrint mlp X mini is the ideal machine for in-line printing of batch codes, graphics, logos, sell-by dates, bar codes and other variable information. The thermal transfer technology prints directly onto packaging substrates such as poly films, foil, Tyvek®, medical paper, cartons and labels. The EasyPrint mlp X mini provides solutions for multiple package coding and printing on Multivac, GEM, Rapidpak, Repak, Ulma, Fargo Automation and all horizontal form, fill, seal, packaging machines.

Multiple Lane Thermal Transfer Printing for:

  • Pharmaceuticals
  • Blister Packaged
  • Syringes
  • Sutures
  • Catheters
  • Processed Meats
  • Cheeses
  • Pouches
  • and more...
EasyPrint mlp X mini

Specifications

Technology

Direct Thermal Transfer

Print Area

Up to 2 x 23.62in (51 x 630mm)

Print Speed

From 25mm/sec up to 600mm/sec

Print Density

300 DPI (12 dots/mm)

# of Lanes to Print

Up to 99

Graphic Logos

BMP, DXF, PCX, TIF, WMF, GIF

Bar Codes

EAN 13, EAN 8, Code 39, 2/5 Interleave, UPC A, UPC E, Code 128, EAN 128, HIBC LIC 128, PZN, EAN add-on, Date Code, Data Matrix

Time/Date

Yes

Memory Storage

On Board USB x2, PCMCIA, or PC

Ribbon Length

3,198 ft. (975m)

Communication

Serial RS 232, USB, Parallel DB25, Ethernet

Display

7" Color Touch Screen

Temperature

41°F - 104°F (5°C - 40°C)

Humidity

10 - 80% without condensation

Electrical

115/230 VAC, 50/60Hz, 400VA

Compressed Air

.353 CFM @ 88 PSI, Max (10LT/min @ 6 Bar)

Benefits of EasyPrint Thermal Transfer Printing

Saves Time and Money

Thermal transfer eliminates costly setup and downtime of changing metal or rubber type on hot stamp and competitive coders. No messy ink jet cleanup or downtime. The EasyPrint mlp X is an easy alternative to labels and pre-printed films.

More Prints Per Ribbon

Over 51,181 (19.05mm) prints per ribbon. The EasyPrint mlp X has an automatic, highly accurate, ribbon advance system that minimizes ribbon usage and delivers more prints per ribbon.

High Speed

Unique electronic design enables printing at speeds up to 600mm/sec. across a web.

EasyPrint MLP Apex samples

EasyPrint S32 C

Continuous Motion Thermal Transfer Printer

EasyPrint s35 C Continuous Motion Thermal Transfer Printer

The EasyPrint C is the fastest (up to 600mm per second!) high quality thermal transfer printer available for continuous motion flow wrappers, baggers, labelers, cartoners, and all continuous moving webs.

The EasyPrint C delivers high-quality, variable coding and printing, company logos, real time and bar codes on all flexible films, Tyvek®, labels, cartons and foils.

The EasyPrint C offers the largest print area available (5" x 39.37") * with programmable flexibility. All Easy Print thermal printers utilize our unique ribbon saving feature, resulting in the lowest cost per print.

*depending on label content

Specifications

Print Technology

Thermal Transfer, high-speed corner-edge

Print Area

2 Inch Model:   2" x 39.37" (51mm x 1000mm)

5 Inch Model:   5" x 39.37" (128mm x 1000mm)

Print Speed

Up to 1.97 ft / second (600mm / second)

Print Density

300 DPI, 12 pixels / mm

Graphic Logos

BMP, DXF, PCX, TIF, WMF, GIF

Bar Code

HIBC2LIC, EAN 13, EAN 8, EAN 128, CODE 39, 2/5 Interleave, UPC A, UPC E, ESN, EAN Add-on, Date Code

Time / Date

Yes

Memory Storage

USB x2 or PC

Alarm

Ribbon Reserve, Ribbon End, General Faults

Communication

Serial RS232, USB, DB25 Parallel, Ethernet

Display

7" Color Touch Screen

Electrical

115/230 VAC, 50/60Hz, 400VA

EasyPrint S32 i

Intermittent Motion Thermal Transfer Printer

EasyPrint s35 i Intermittent Motion Thermal Transfer Printer

The EasyPrint i provides the highest quality thermal transfer printing for all intermittent motion packaging machines, baggers and labelers.

The EasyPrint i delivers high-quality, variable coding and printing, company logos, real time and bar codes on all flexible films, Tyvek®, labels, cartons and foils.

The EasyPrint i 5" provides the largest print area available and offers programmable flexibility to eliminate costly preprinted web and labels.

All EasyPrint Thermal Printers utilize our unique ribbon saving feature resulting in the lowest cost per print.

Print Technology

Thermal Transfer, high-speed corner-edge

Print Area

2 Inch Model:   2" x 4" (51mm x 102mm)

5 Inch Model:   5" x 4" (128mm x 102mm)

Print Speed

Up to 1.64 ft / second (600mm / second)

Print Density

300 DPI, 12 pixels / mm

Graphic Logos

BMP, DXF, PCX, TIF, WMF, GIF

Bar Code

HIBC2LIC, EAN 13, EAN 8, EAN 128, CODE 39, 2/5 Interleave, UPC A, UPC E, ESN, EAN Add-on, Date Code

Time / Date

Yes

Memory Storage

USB x2 or PC

Alarm

Ribbon Reserve, Ribbon End, General Faults

Communication

Serial RS232, USB, DB25 Parallel, Ethernet

Display

7" Color Touch Screen

Electrical

115/230 VAC, 50/60Hz, 400VA

EasyPrint S32 X

Harsh Environment Thermal Transfer Printer

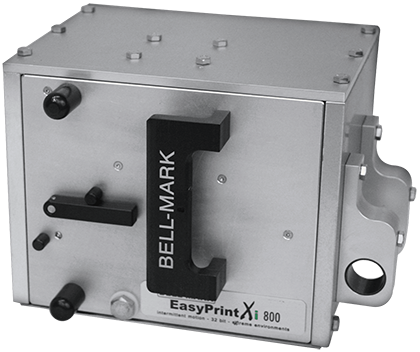

EasyPrint s35 X Harsh Environment Thermal Transfer Printer

The EasyPrint X thermal transfer printer was developed to provide a printing solution for extreme (wash-down) environments.

The EasyPrint X is IP65 rated, available for both intermittent or continuous motion packaging machines, and provides the fastest (up to 600mm/sec) high quality printing directly onto packaging substrates.

  • Intermittent and Continuous
  • Floating print head provides perfect alignment to substrate for high quality
  • Advanced ribbon savings and print head life management
Cassette is IP65 rated for harsh environments

Specifications

Print Technology

Direct Thermal Transfer

Print Area

2 Inch Model:   2.08" x 4" (52.83mm x 101.6mm)

5 Inch Model:   5" x 4" (127mm x 101.6mm)

Print Speed

Up to 1.64 ft / second (500mm / second)

Print Density

300 DPI, 12 pixels / mm

Graphic Logos

BMP, DXF, PCX, TIF, WMF, GIF

Bar Code

HIBC2LIC, EAN 13, EAN 8, EAN 128, CODE 39, 2/5 Interleave, UPC A, UPC E, ESN, EAN Add-on, Date Code

Time / Date

Yes

Memory Storage

USB x2 or PC

Alarm

Ribbon Reserve, Ribbon End, General Faults

Communication

Serial RS232, USB, DB25 Parallel, Ethernet

Temperature

41°F - 104°F (5°C - 40°C)

Display

7" (178mm) Color Touch Screen

Electrical

115/230 VAC, 50/60Hz, 400VA

Compressed Air

.353 CFM @ 88 PSI, Max (10LT/Min @ 6 Bar)

Specifications

Features / Benefits

  • Full Touch Screen Control
  • Full USB Support
    • USB Memory Stick
    • USB Keyboard
    • USB Scanner
  • Built-in Web Server
  • Faster label processing - at least 4X
  • Fast real-time variable calculation / update times

Fault-Tolerant

  • Protected against mis-wiring to packaging machine
  • Protected against wrong line voltage - universal input
  • Air pressure detection protects print head

More Application Features

  • Multi-Pack printing
  • Die-Counting feature with synchronization
  • Electronic registration
  • Hand Scanner input
  • Built-in bar codes

Environmental

  • IP-65 Wash tolerant version available

Less complex to operate

  • Easier to learn, less to remember
  • More intuitive menus, simpler menu structure
  • Fewer user-settable operating parmeters
  • One-touch built-in test print

Smarter

  • Automatic real-time parameter compensation tracks packaging machine

Fewer electronics

  • Printed circuits having reliable surface-mount technology and fewer interconnections
  • Only 1 cable between control and printer

EasyPrint S32 touch screen

EasyPrint s32 Touch Screen

Optional HMI upgrade

Advanced, IP-67 rated,
10.4" (264mm) touch-screen HMI

EasyPrint s35 10.4 inch optional upgrade
