Digital printing solutions for the


Converting Industry

High-speed Printing Solutions

BELL-MARK offers multiple high-speed printing solutions to satisfy a wide range of different printing applications in the converting industry. From our thermal inkjet printers that can reach ultra fast speeds up to 2400 feet per minute, to our InteliJet HD piezo inkjet printer that provides incredible print quality in full color CMYK, we have the perfect solution for your printing application no matter the print requirements.

Digital printing provides users many benefits over traditional printing methods. Our high-speed printing solutions are extremely low maintenance, which provides users the benefit of minimal downtime, reduced supply costs, and increased production. Print your entire packaging artwork, including all variable data, with the added benefit of our built-in label creation software, allowing users to easily manage artwork files and make adjustments directly from the printers HMI.

Printers for converting industry

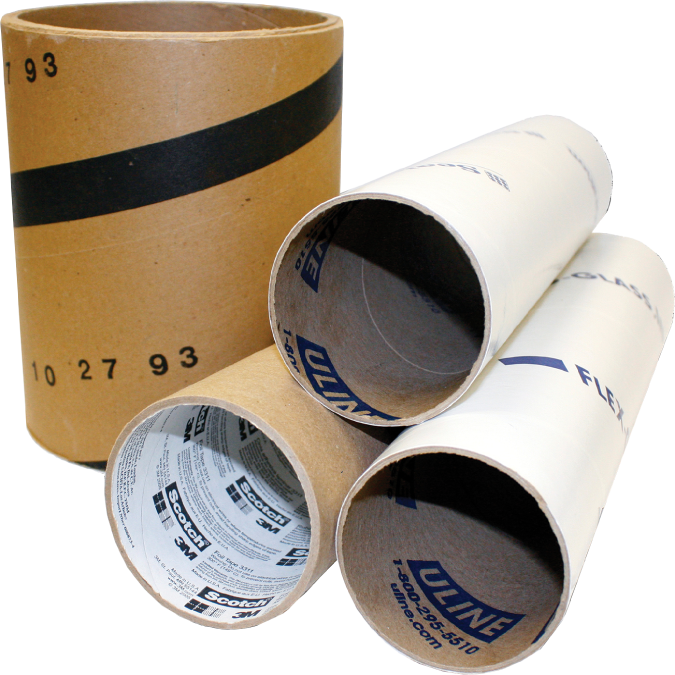

Paper tube / Core

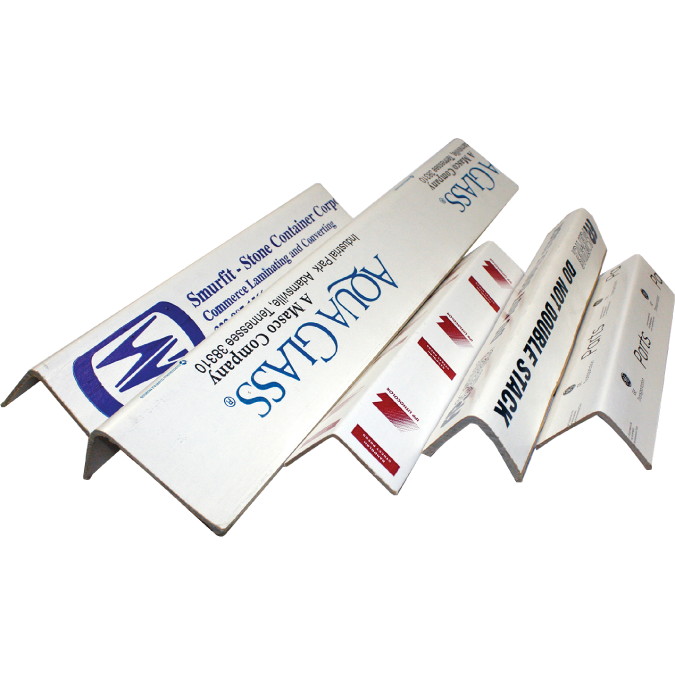

Cornerboard

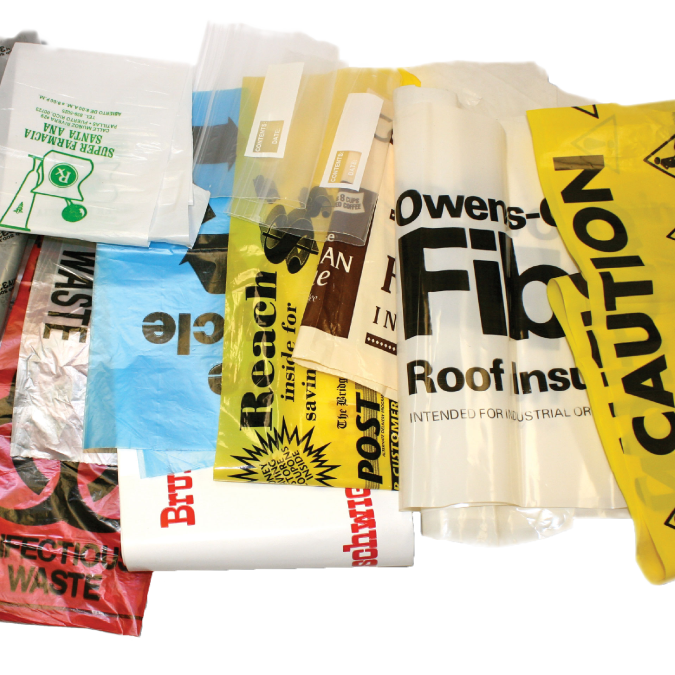

Plastic bags

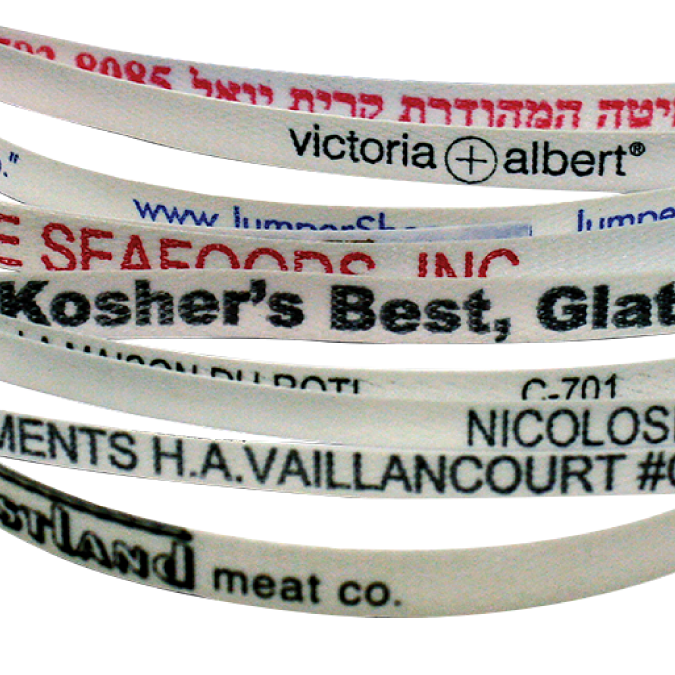

Strapping

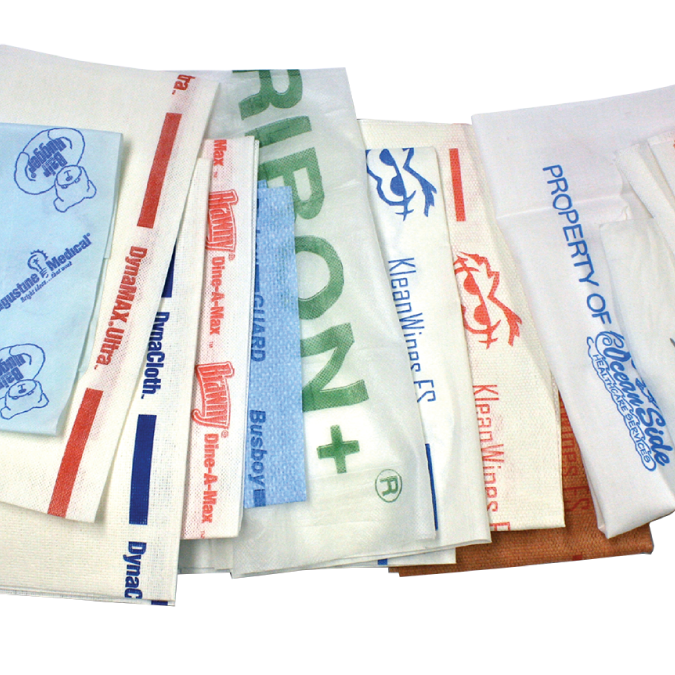

Paper products

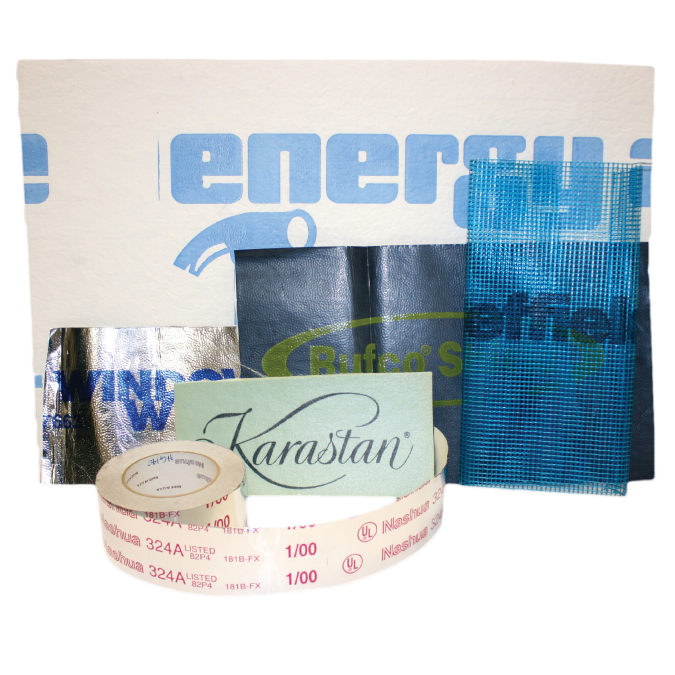

Other materials
Printers for converting industry
Paper tube / Core
Cornerboard
Plastic Bags
Strapping
Paper products
Other materials

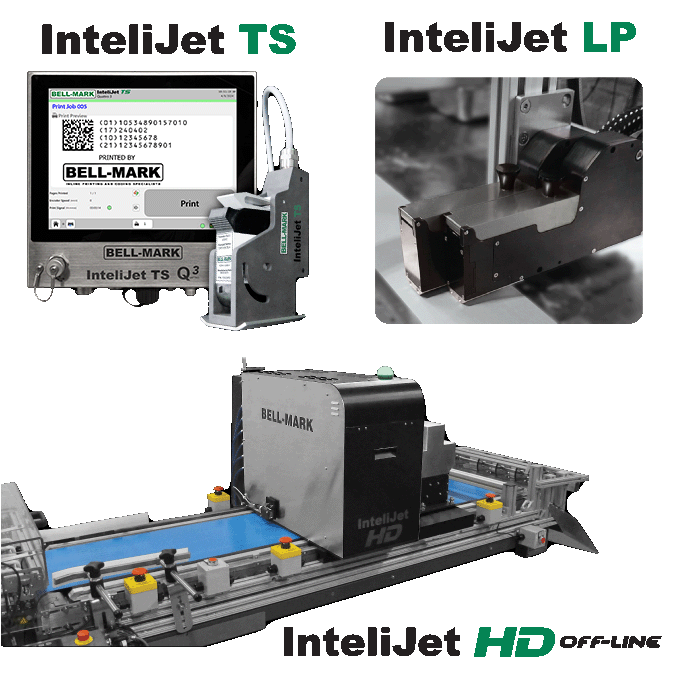

InteliJet LP

Thermal Inkjet 4.0 Print Solution

^ Click play to see the InteliJet LP printing at ultra fast speeds.

InteliJet LP

High-speed, High-resolution, TIJ 4.0 Printer

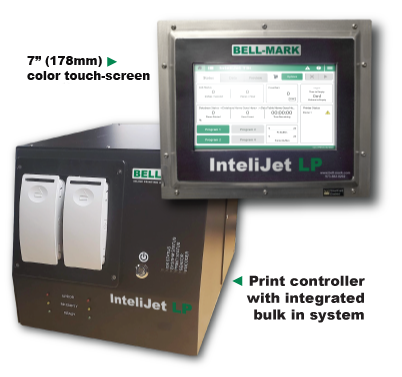

InteliJet LP HMI & print controller with integrated bulk ink system

The latest innovation from BELL-MARK is the InteliJet LP. Utilizing TIJ 4.0 technology with 22mm wide print heads, it is a high throughput variable data printing solution. With increased throw distance and a speed that is 4 times faster than TIJ 2.5 printers, it reduces operational costs while providing incredible print resolution in applications where quality is a major business driver.

  • Print speeds up to 2400 FPM
  • 1,200 DPI resolution
  • 22mm print head width
  • Up to 7mm throw distance
  • Lower cost bulk ink solution
  • Higher Efficiency
  • Stitch up to 4 print heads, controlled by a single user interface

Click here to learn more about the InteliJet LP thermal inkjet printer.

InteliJet HD

Piezo Inkjet Printer

InteliJet HD off- line

Offline Feeder & Printer System

Feed and print empty packages and packaging components.

InteliJet HD Offline
  • Connect to customer ERP systems and through a hot folder, can utilize existing label software like Prisym, Labelview, Bartender, and more
  • Lowest cost of ownership compared to other printing systems

Monochrome, 2 Color & Full CMYK

  • Piezo Drop on Demand digital printer will print all artwork including variable information
  • Available Single color, Two color, & Full CMYK configurations allow limitless print capabilities for existing and future business
  • UDI compliant print solution that can be retrofitted to existing packaging machines
  • LED Curable or Water Based Inks for printing on most substrates
  • 600 X 600 DPI Print Head
    • Each Monochrome Print Head is 108mm wide, 105mm when stitched
    • Each CMYK Print Head is 112mm wide, 108mm when stitched

Click here to learn more about the InteliJet HD piezo inkjet printer.

InteliJet TS


Thermal Inkjet Printer

InteliJet TS

Small Character Thermal Inkjet Printers for Marking and Coding Applications

Easy Installation, Zero Maintenance and Extreme Versatility make the BELL-MARK InteliJet TS line of printers the ideal solution to deliver high-quality:

  • Variable Data
  • Logos
  • Graphics
  • Lot Numbers
  • Date Codes
  • and Bar codes

Print on medical paper, Tyvek®, and most poly and foil webs.

InteliJet TS Print Head

Orientation of Print

  • Rotate (any direction in 1° increments)

Print Resolutions and Speeds

  • 600x600 DPI at   25 IPS, 125 FPM, 0.635 M/S
  • 600x300 DPI at   50 IPS, 250 FPM, 1.27 M/S
  • 600x150 DPI at 100 IPS, 500 FPM, 2.54 M/S

Printable Items

  • All twenty-four Windows Unicode languages
  • Dynamic and fixed text
  • Dynamic and fixed bitmaps
  • Time/date stamp - fixed or real-time
  • Barcodes including 2D GS1 Data Matrix
  • Barcode width reduction feature for printing high quality barcodes on porous substrates

Printing Capability

  • Length:
    • 600 DPI = 27" (685.8mm)
    • 300 DPI = 54" (1371.6mm)
  • Height:
    • 0.5" per printhead

Controllers/Drivers

  • GUI interface software is included

Communication Interfaces

  • 10/100-Base T Ethernet, RS-232

Get the most our of your InteliJet TS™ with innovative BELL-MARK inks

  • Resin inks for non-porous surfaces including poly & foil
  • Water-based inks for porous surfaces including medical grade paper & Tyvek®
  • Unique formulas for optimum color, contrast or minimum bleed
  • Black ink is the default color, 14 spot color variations available to meet your specific requirements
  • PMS color matching available upon special request
  • UV & IR components for security and the ultimate in personalization

Click here to learn more about the InteliJet TS thermal inkjet printer.
