InteliJet LPc

Thermal Inkjet 4.0 Print Solution

▼7/8" (22mm) wide print heads

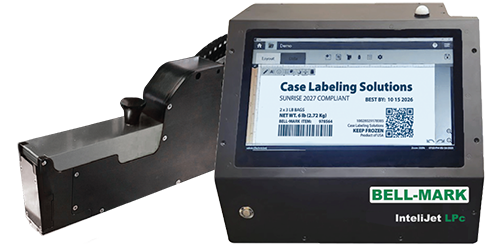

InteliJet LPc HMI with printheads

11.6" (264mm) color touch-screen HMI ▲
with integrated bulk ink system

High-speed, High-resolution, TIJ 4.0 Printer

The latest innovation from BELL-MARK is the InteliJet LPc. Utilizing TIJ 4.0 technology with 22mm (7/8") wide print heads, it is a high throughput variable data printing solution. With increased throw distance and a speed that is 4 times faster than TIJ 2.5 printers, it reduces operational costs while providing incredible print resolution in applications where quality is a major business driver.

  • Printing and Coding
  • Labels printed directly on product
  • Serialization Ready
  • Print speeds up to 732 m/min (2,400 ft/min)
  • 1,200 DPI resolution
  • 22mm (7/8") print head width
  • Up to 7mm (1/4") throw distance
  • Lower cost bulk ink solution
  • Higher Efficiency
  • Stitch up to 4 print heads, controlled by a single user interface
InteliJet LP printed samples

TIJ 4.0 Print Technology

With a 22mm (7/8") print swath, a 775mL (25.3 oz) ink supply, greater throw distance and improved print resolution, the InteliJet LPc is designed exclusively for high production environments.

  • 22mm (7/8") print width
  • Improved print quality and throw distance
  • 4 times faster than TIJ 2.5
InteliJet LP Specifications
Print Width 22mm / 0.875"
Resolution 1,200 DPI
Drop Size 6 pl
Frequency Jetting 72 kHz
Throw Distance Up to 7mm / 1/4"
Print head size comparison - TIJ 2.5 vs TIJ 4.0

High-quality, High-speed

The InteliJet LPc supports up to 1,200 DPI resolution, giving you maximum quality at all times.

Print sample showing quality of printed text at various font sizes

For all production applications where throughput is critical, the printer is capable of ultra fast speeds to meet your productivity goals.

  • 1,200 DPI print resolution
  • Up to 732 m/min (2,400 ft/min) line speed
Horizontal Resolution Max Speed
ft/min m/min
1,200 300 92
600 600 183
300 1,200 366
150 2,400 732

Components

Bulk Ink Solution

The InteliJet LPc utilizes one 775 mL bulk ink supply.

InteliJet LPc Bulk Ink Supply

Print Controller with Integrated Bulk Ink

Small footprint (381mm x 254mm x 241mm / 15" x 10" x 9.5") industrial housing with a docking station, power and monitoring LEDs.

Connectivity Panel

Encoder, Sensor, Daisy Chain, I/O, Ethernet, Stack Light

InteliJet LPc Print Controller

22mm (7/8") Stitch-able Print Head

Up to four 22mm print heads supported. Can be stitched. Low profile print capability at 16.5mm (0.65") from the conveyor.

3 Meter Umbilical

Carries ink and electrical signals.

Patented Pen Stall Design

Opening the cover retracts pogo pin contact board. This powers down the cartridge and protects the electronics and print cartridge from being damaged during insertion and removal.

InteliJet LPc Print Heads

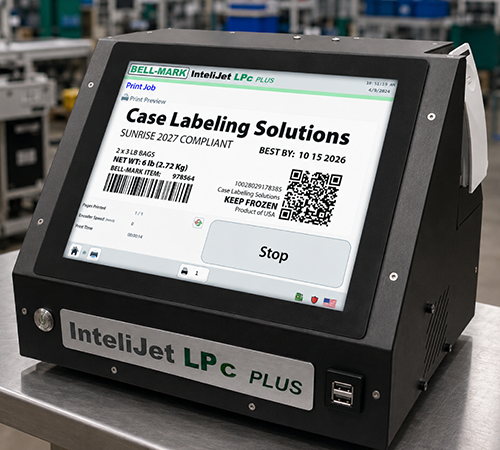

Advanced User Interface

The 295mm (11.6") color touch-screen HMI offers a powerful use interface which enables users to monitor a wide array of operating conditions, such as job types and counts. The HMI also includes label creation software. Use the touch-screen to easily preview and create print templates or import them via an ethernet connection or USB thumb drive.

InteliJet LPc HMI touch-screen
