EasyPrint III


& EasyPrint III X

Thermal Transfer Overprinter

EasyPrint III

The newest advancement in a successful series

Our new EasyPrint sets new standards for packaging printing. Continuous or Intermittent mode, speed, print resolution, installation position; there are no limits. Therefore, our new product line EasyPrint III  is nothing more than the logical continuation of a success story.

EasyPrint 3 HMI & Print Head
EasyPrint 3 sample - thermal transfer print on poly package
  • Print code dates, logos, barcodes and more on a wide range of materials.
  • Dual Stepper motors for ribbon drive / take-up.
  • Intermittent and continuous mode freely selectable.
  • Display of remaining transfer ribbon for quick ribbon changes.
  • Optimal transfer ribbon usage.
  • All common interfaces for fast data exchange.
  • Intuitive graphical user interface with icon buttons.
  • WYSIWYG display with preview for verifying the layout.
  • 7" (178mm) touch-screen color display
  • Barcode Shaving

EasyPrint III

Control Unit

The control unit of the EasyPrint III  features an intuitive user interface with icon buttons and a 7" (178mm) color touch-screen display with preview for layout verification. This makes it very easy to keep control over the print configuration.

EasyPrint 3 Control Unit

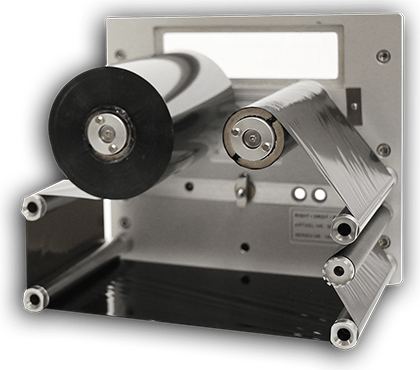

EasyPrint 3 Print Head

EasyPrint III Print Head

EasyPrint 3 inside view of print head

Print Head (Inside View)

EasyPrint 3 X

  IP-65 Rated Cleaning Cassette

During the cleaning process neither print module, nor control unit, must be dismounted or covered. The cleaning cassette can simply replace the ribbon cassette within seconds.

EasyPrint III X

Harsh Environment IP-65 Rated Control Box & Print Head

EasyPrint 3X Print Head EasyPrint 3 X Bottom

EasyPrint III Features

Continuous Mode

When printing continuously, the print head stands still while the packaging foil is guided through. Printing takes place during the operation of the packaging machine.

Intermittent Mode

When printing intermittently, the print head moves over the foil in order to move back to initial position. Printing takes place while the machine is at a short standstill.

Bracket System

Our bracket systems permit an uncomplicated integration in your packaging line. The newly positioned return pulleys and the registration unit can be mounted on all sides, offering a broad scope of variation.

Left & Right Version

EasyPrint III offers the bracket systems as a left-mounted and right-mounted variant. Horizontal and vertical mounting is virtually unlimited, providing maximum flexibility.

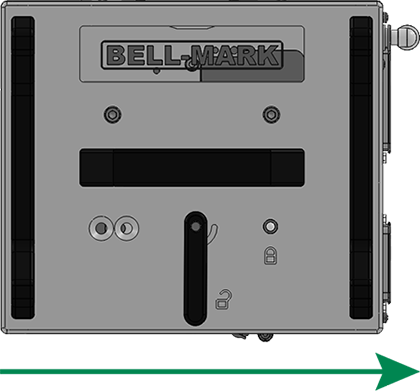

Left (EP40002L)

EasyPrint 3 Left Version

Web Direction

Right (EP40002R)

EasyPrint 3 Right Version

Web Direction

EasyPrint 3 Samples

Specifications

Printing EasyPrint III 53 EasyPrint III 128
Print Width Max 53.3 mm Max 128 mm
Print Length Continuous Mode
6000 mm		 Intermittent Mode
75 mm		 Continuous Mode
3000 mm		 Intermittent Mode
75 mm
Print Speed Continuous Mode
50 - 800 mm/s		 Intermittent Mode
50 - 600 mm/s		 Continuous Mode
50 - 450 mm/s		 Intermittent Mode
50 - 600 mm/s
Back Speed Intermittent Mode Only: Max 600 mm/s
Resolution 300 DPI
Interface
Serial RS-232C (max 115,200 baud)
USB 2.0 High Speed Slave
Ethernet 10/100 Base T, LPD, RawIP-Printing, DHCP, HTTP, FTP
2 x USB Master Connection for external USB keyboard and memory stick
Connection Value
Pneumatic Connection Minimum 6 bar dry and oil-free
Nominal Voltage 110 - 230 V / 50 - 60 Hz
Nominal Current 230 V / 1.5 A - 110 V / 3 A
Fonts
Font Types 6 bitmap fonts | 8 vector fonts/TrueType fonts | 6 proportional fonts | more fonts on demand
Character Sets Windows 1250 to 1257, DOS 437, 850, 852, 857 | All West and East European, Latin, Cyrillic, Greek and Arabic characters are supported | more character sets on demand
Bitmap Fonts Size in width and height 0.8 - 5.6 | Zoom 2 - 9 | Orientation 0°, 90°, 180°. 270°
Vector fonts/TrueType fonts 6 BITSTREAM® fonts | Size in width and height 1 - 99 mm variable zoom | Orientation 360° in steps of 90°
Font Attributes Dependent on font type - bold, italic, inverse, vertical
Character Spacing Variable
Bar Codes
1D Bar Codes CODABAR, Code 128, Code 2/5 interleaved, Code 39, Code 39 extended, Code 93, EAN 13, EAN 8, EAN ADD ON, GS1-128, Identcode, ITF 14, Leitcode, Pharmacode, PZN 7 Code, PZN 8 Code, UPC-A, UPC-E
2D Bar Codes Aztec Code, CODABLOCK F, DataMatrix, GS1 DataMatrix, MAXICODE, PDF 417, QR Code
GS1 Bar Codes GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Truncated
All bar codes are variable in height, module width and ratio | Orientation 0°, 90°, 180°, 270°, check digit and human readable line optional
