EasyPrint mlp X mini


Multi-Lane ● Traversing ● Thermal Transfer Printer

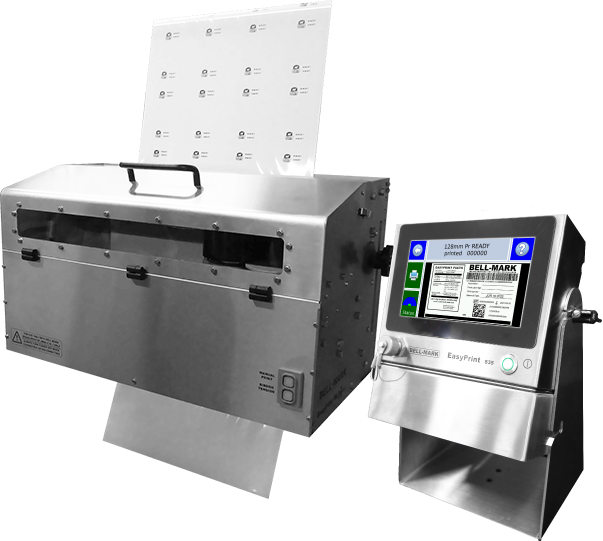

EasyPrint mlp X mini

The EasyPrint mlp X mini is designed for versatility. The EasyPrint mlp X mini is the ideal machine for in-line printing of batch codes, graphics, logos, sell-by dates, bar codes and other variable information. The thermal transfer technology prints directly onto packaging substrates such as poly films, foil, Tyvek®, medical paper, cartons and labels. The EasyPrint mlp X mini provides solutions for multiple package coding and printing on Multivac, GEM, Rapidpak, Repak, Ulma, Fargo Automation and all horizontal form, fill, seal, packaging machines.

Multiple Lane Thermal Transfer Printing for:

  • Pharmaceuticals
  • Blister Packaged
  • Syringes
  • Sutures
  • Catheters
  • Processed Meats
  • Cheeses
  • Pouches
  • and more...
EasyPrint mlp X mini

Benefits of EasyPrint Thermal Transfer Printing

Saves Time and Money

Thermal Transfer eliminates costly setup and downtime of changing metal or rubber type on hot stamp and competitive coders. No messy ink jet cleanup or downtime. The EasyPrint mlp X mini is an easy alternative to labels and pre-printed films.

More Printer Per Ribbon

Over 51,181 3/4 inch (19.05mm) prints per ribbon. The EasyPrint mlp X mini has an automatic, highly accurate, ribbon advance system that minimizes ribbon usage and delivers more prints per ribbon.

High Speed

Unique electronic design enables printing at speeds up to 600mm/second across a web.

EasyPrint mlp X mini samples

Specifications

Technology

Direct Thermal Transfer

Print Area

Up to 8.3 x 23.62in (213 x 630mm)

Print Speed

From 25mm/sec up to 600mm/sec

Print Density

300 DPI (12 dots/mm)

# of Lanes to Print

Up to 99

Graphic Logos

BMP, DXF, PCX, TIF, WMF, GIF

Bar Codes

EAN 13, EAN 8, Code 39, 2/5 Interleave, UPC A, UPC E, Code 128, EAN 128, HIBC LIC 128, PZN, EAN add-on, Date Code, Data Matrix

Time/Date

Yes

Memory Storage

On Board USB x2, PCMCIA, or PC

Ribbon Length

3,198 ft. (975m)

Communication

Serial RS 232, USB, Parallel DB25, Ethernet

Display

7" Color Touch Screen

Temperature

41°F - 104°F (5°C - 40°C)

Humidity

10 - 80% without condensation

Electrical

115/230 VAC, 50/60Hz, 400VA

Compressed Air

.353 CFM @ 88 PSI, Max (10LT/min @ 6 Bar)

Remote Training & Support

BELL-MARK printers include remote training & support at no additional costs, only requiring an internet connection.
